slimSASH

The highest levels of energy efficiency and security combined with a sleek, timeless design and the slimmest sight-lines at just 99mm!

KEY FEATURES

• Double or triple glazed OPTIONS

• Acoustic insulation OPTIONS

• Polished, easy-clean white finish

• 100% Lead-free PVCu substrate

• Black, White or Grey warm-edge spacer bar

• High-tech 6-chamber profile construction uses structural PVCu rather than steel where possible

• Ultra-slim ‘almost invisible’ co-extruded glazing gaskets

• Foiled woodgrain or coloured finish OPTIONS

STANDARD specification

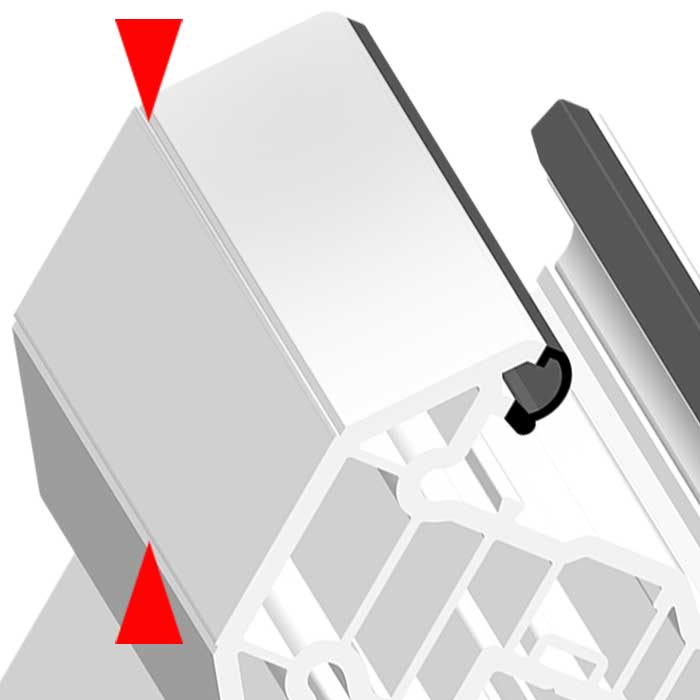

FEATURE GROOVE

slimSASH has a distinguishing 'feature groove' on the edge of the chamfers

SIGHT LINE

The slimmest sightline in the UK for an equivalent specification window

U-VALUE

Rate of heat transfer through window

FRAME DEPTH

Depth of outer-frame, the distance it protrudes from the plaster line

WER

Certified WIndow Energy Rating for energy efficiency

BEADS

Choice of chamfered or sculptured glazing beads to mix or match.

DOUBLE-GLAZED

High-tech double-glazed sealed units

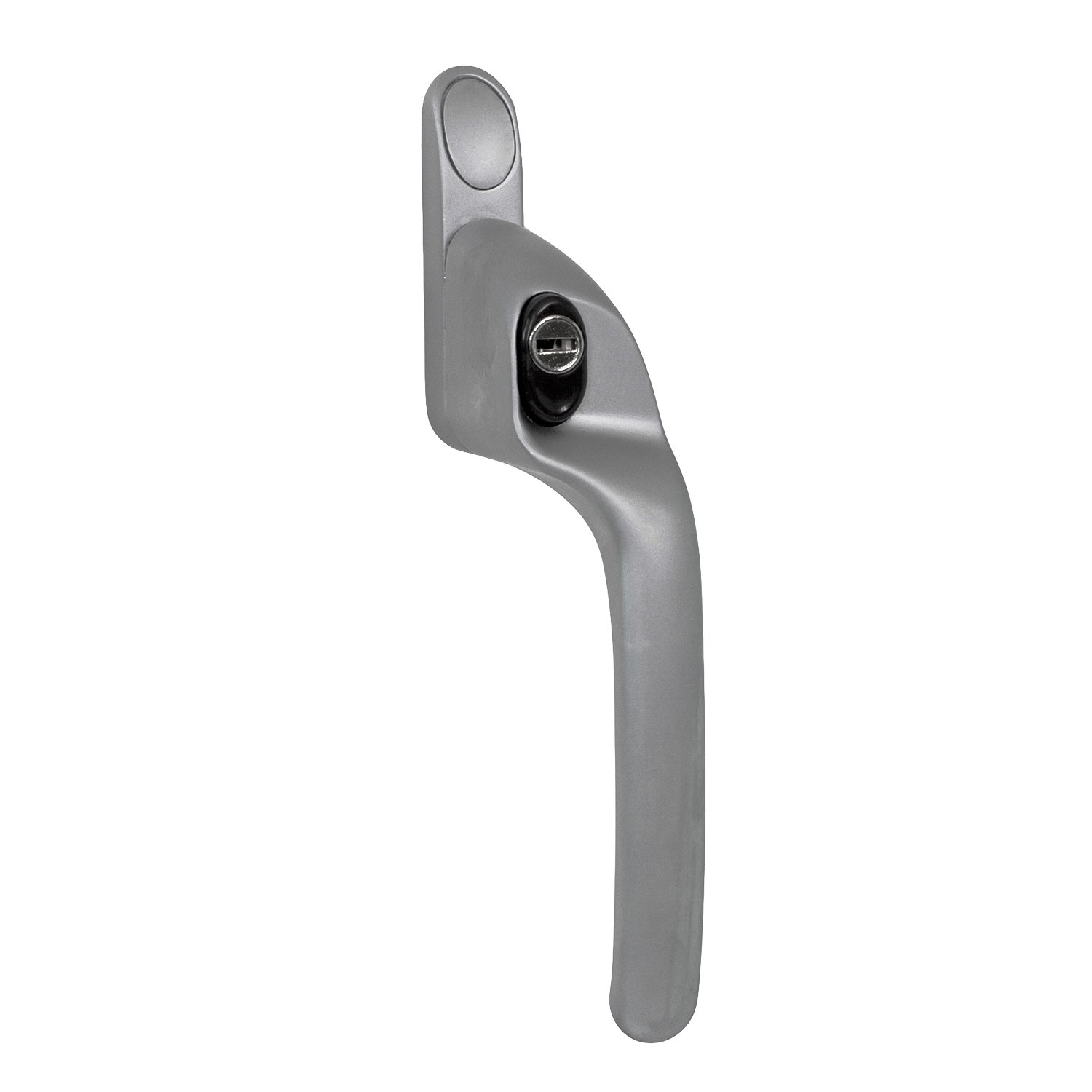

HANDLE

Offset, easy-grip lockable handle

SHOOT-BOLTS

Shoot-bolt locking (shown engaged) form multi-point locking

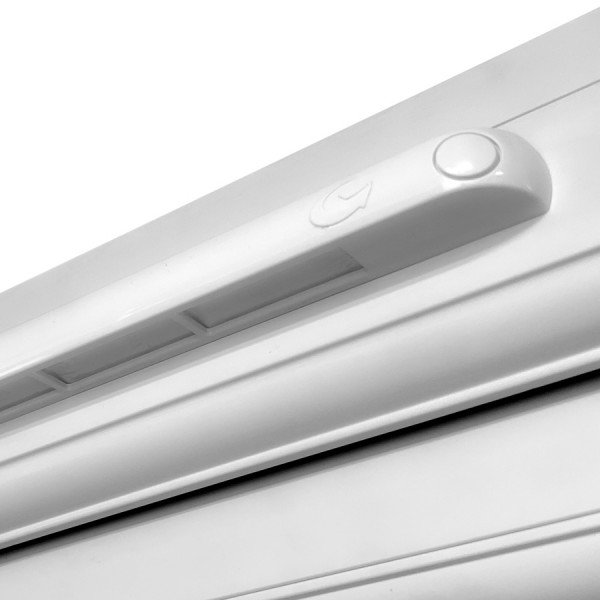

TRICKLE VENTS

Part F-compliant trickle ventilation

HINGES

Cotswold easy-clean hinges

PULL-IN BLOCK

Pull-in blocks ensure sash alignment

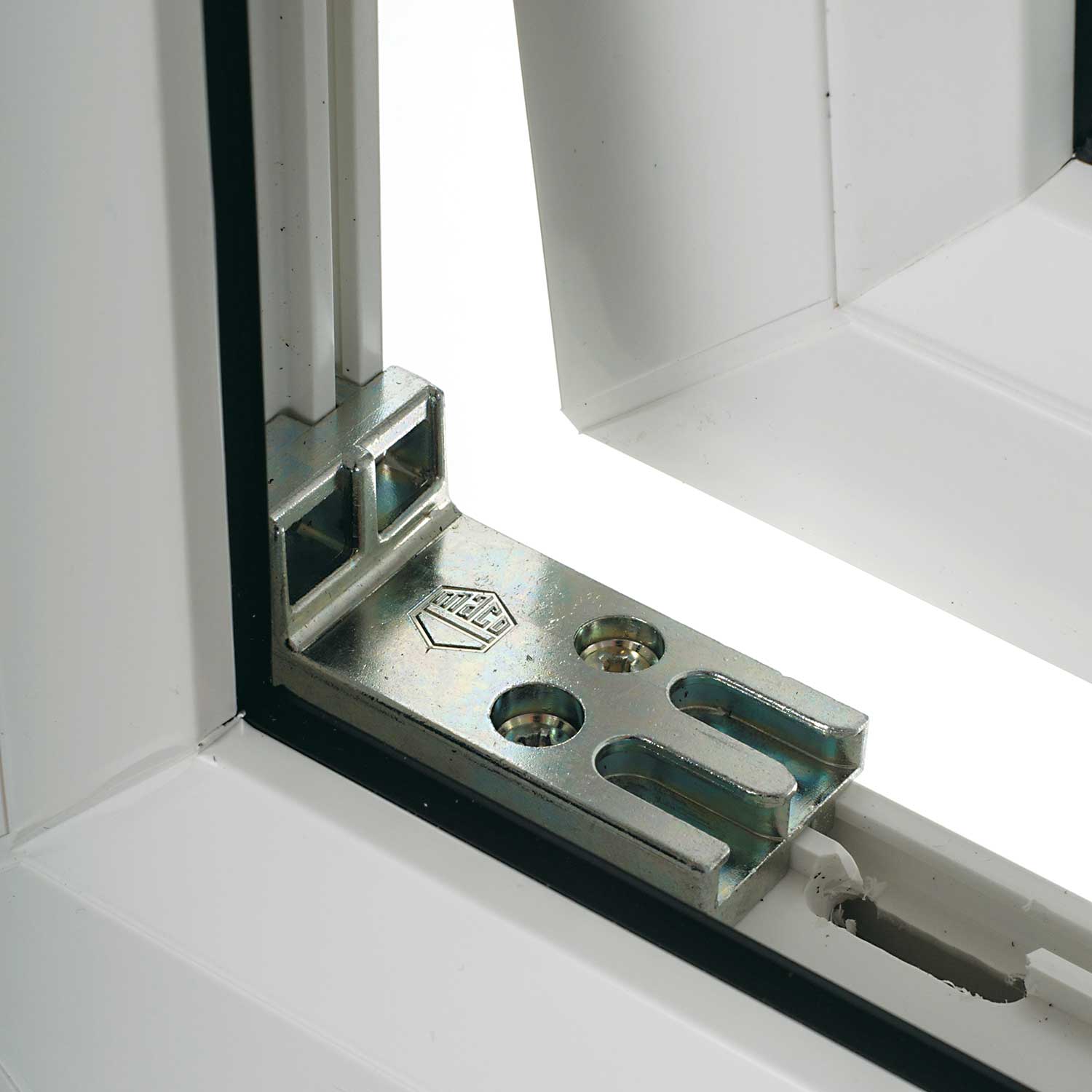

DIRECTIONAL KEEP

Secure keep for expanding bolts with night-vent position

NIGHT-VENT KEEP

Completely locks window in a slightly ajar position

Less frame, more glass...

Our exclusive slimSASH casement window has a frame/ sash sightline of just 99mm. The whole window comfortably exceeds a 1.2 U-Value or a WER A+.

As a result of this slimmer design, more light is allowed indoors whilst the greater glass area allows for even more efficient insulation and control of incoming sunlight.

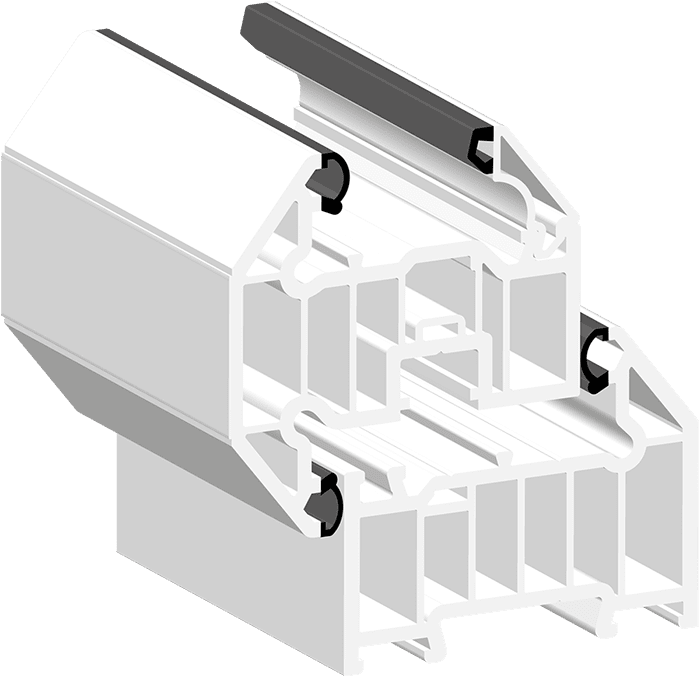

PVCU PROFILE COMPARISON

slimSASH

A profile with 99mm sightline, puttyline chamfered appearance and distinctive feature groove.

sculpturedSASH

A profile with 104mm sightline and a decorative sculptured appearance.

chamferedSASH

A profile with 104mm sightline and a puttyline chamfered appearance.

flushSASH

A profile with 104mm sightline, flush-fitting, non-protruding sash and a sculptured appearance.

RAL colour chart

Please note that our ColourTEK system can reproduce any colour for our products, not only the trade colours displayed above.

Due to various reasons, an accurate virtual representation of a RAL colour is not always possible. Physical colour swatches have painted representations of colours, and these can be found at any TeamFrames branch.
